AVAMINE

2-osaline pöörduks

3-osaline voldikuks

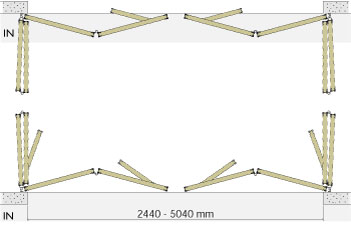

4-osaline voldikuks

5-osaline voldikuks

6-osaline voldikuks

* Sulgudes näidatud mõõdud kehtivad osaliselt jalgväravate kohta

Installation dimensions

Anchorage and fixing to the door opening
Ecolid doors are made with overlapping installation, for a contact or sliding moulding.

Max height:
Sliding moulding = 6005 mm (4600))
Contact moulding = 5950 mm (4600)
One section as entry door = 3200 mm
(Dimensions in brackets apply to hinged doors)

Horizontal section, overlapping installation

* Door surrounds are not included in the door package as standard.

Windows

Ecolid doors can be provided with double glazed insulating window units. You can choose from six different types of windows from our standard range, but other dimensions are available to special order. Standard breast height = 1070 mm.
